100W Voltage/Current

  • 100W 24V Economic IP67 waterproof LED Power Supply
  • 100W 24V Economic IP67 waterproof LED Power Supply
100W 24V Economic IP67 waterproof LED Power Supply100W 24V Economic IP67 waterproof LED Power Supply

100W 24V Economic IP67 waterproof LED Power Supply

  • Model Number:APMS-100SPF-24
  • 24V 4000mA outdoor waterproof driver
  • waterproof led power supply 100W 24V
  • LED Strip external led transformers
  • Product description: 100W 24V 4000mA, LED Power Supply, IP67 waterproof type, used for outdoor led lighting, floodlights, LED wall washer lights, illuminated signs, light box, linear lighting
  • INQUIRY

Waterproof IP67 LED Power Supply Driver Transformer 100W 240V AC to 24V DC Low Voltage Output with AC Plugs

Product Features:

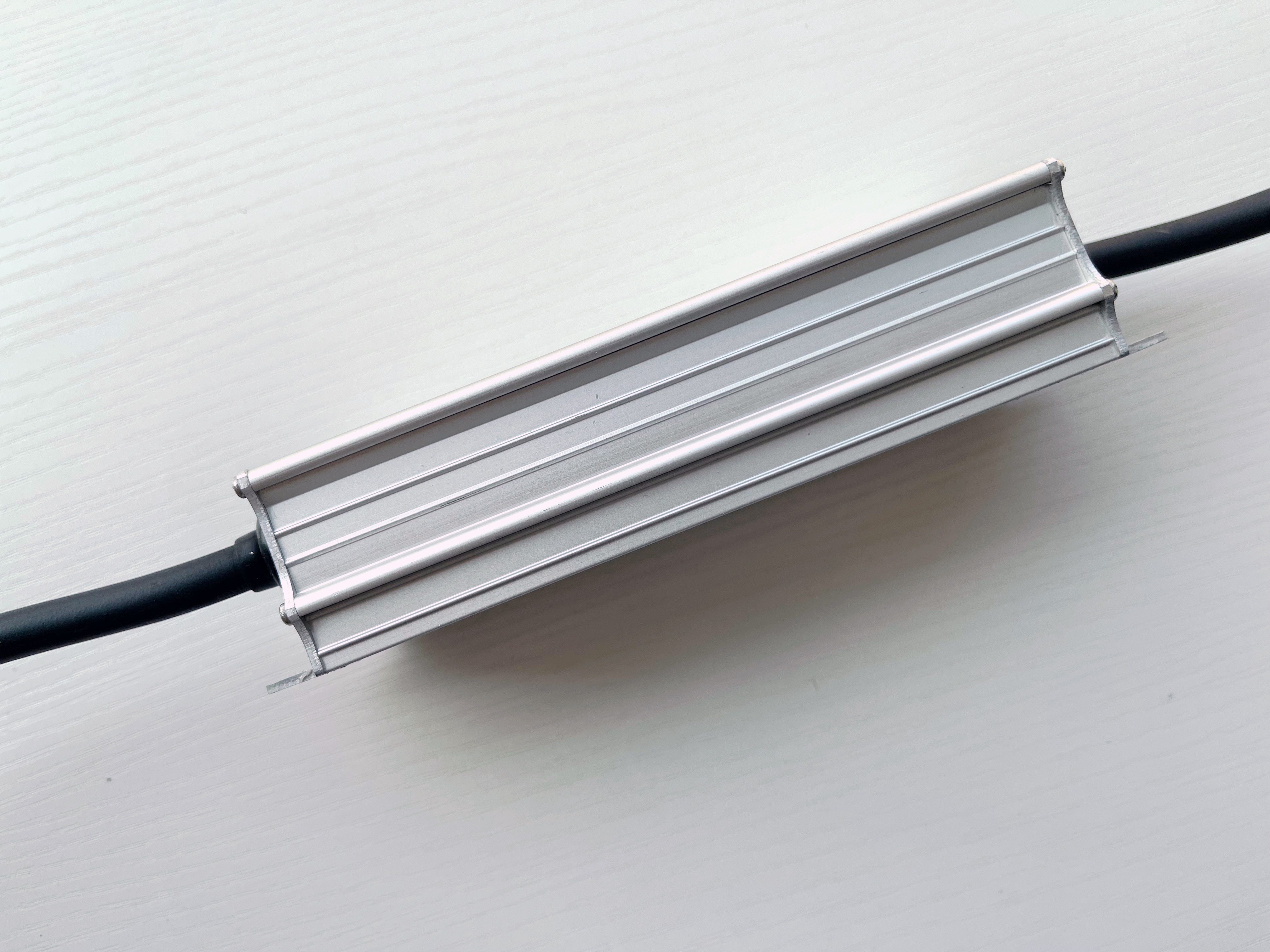

100% Waterproof IP67 protect for outdoor use. Aluminum metal housing, easy for heat dissipation and ensure stability----Using the latest silicon gel potting compound waterproof technology prevent water and dust into interior. It can withstand short-term immersion, -40℃~85℃ extreme temperatures and extreme weather such as rainstorms, snowstorms,lightning. So it is widely used for outdoor projects, such as LED lighting, security surveillance projects.

Wide Input: AC180-305V, 50/60Hz,1.0A; Output: DC 24V, Max 4A, 100W ; It can provide all amps less than 4A, such as 1A, 2A, 2.5A,3A,4.5A. If your device draws 3A then 3A will be supplied. But if draws more than 4A, only 4A will be supplied and power supply will be damaged soon. DO NOT OVERLOAD.

Certifiedby FCC CE ROHS.----We focus on producing safe & premium power adapters. No noise, low temperature operation, no spontaneous combustion, no explosion, no fire hazard. Automatic overload cut-off, over-voltage cut-off, over-heat cut-off, short circuit protection

Reliable and widely applicable, use it to power LED lights inside or outside without energy waste or risk of circuit overload

High quality with 5 year warranty, and our seller support team always stand behind our products in any way, so please contact us for replacement if you have any quality problems




Model:APMS-100SPF-24

Technical Specs:

1.Output Parameters

Rated Output voltage: 24VDC

Rated Output Current:4.0A

Rated Output Power: 96W Max

Efficiency>90%

Line Regulation:±0.5%

Load Regulation:±1.5%

Voltage tolerance:±3%

2.  Input Parameters

Rated Input voltage:200-277VAC

Input voltage range:176-305VAC, 47-63hz

Input Current Max:1.0A

Inrush Current<70A

Power Factor>0.95

THD<15%

3. Protection

Overload

Short Circuit

Over voltage

Over Temperature

4. Environment

Operating Temperature range:-40 to +80

Storage Temperature range:-45 to +80

Humidity: 1095%

Waterproof Level:IP67



5. Safety Standards

UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,

GB19510.14, IP67 Approved

Withstand voltage: I/P-O/P:3KV

EMI,EMS

EN55015(CISPR15), GB17743, EN61000-3-2 , Class C, EN61000-4-2,

8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4,

EN61000-4-54KV/Line-Line 6KV/Line-Earth, EN61000-4-6

6. Others

MTBF>200Khours

Dimension:140(L)*63 (W)*40(H)mm

Packing: 0.65KG/PC, 350x310x260mm, 20pcs /14.5Kg / 0.02CBM /CTN

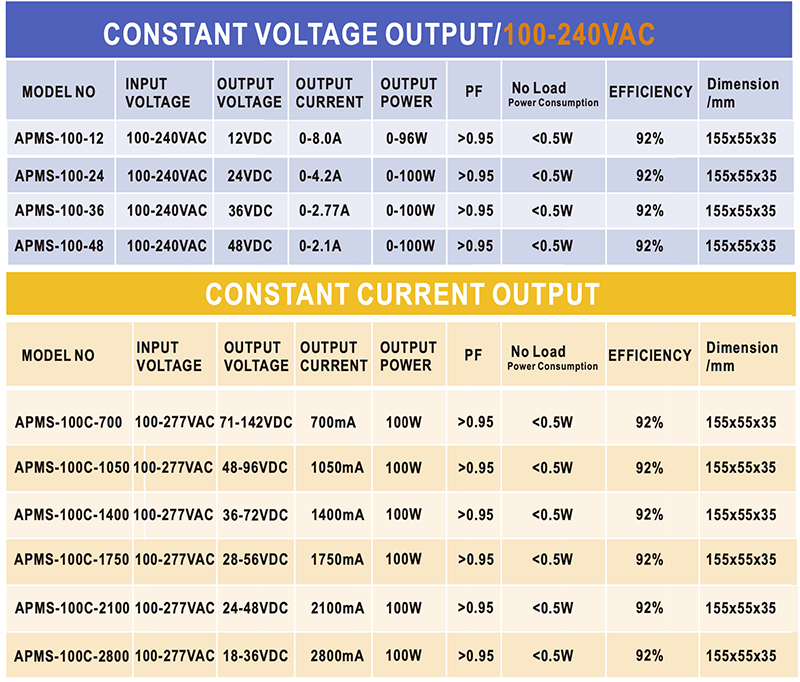

Other output voltage options available:



Technical Specs Download:

APMS-100-24 Technical Specs

APMS-100A1-24 Technical Specs

APMS-100SPF-24 Technical Specs
