150W Voltage/Current

  • 150W 48V Boat and Marine Moisture-proof Power source
150W 48V Boat and Marine Moisture-proof Power source

150W 48V Boat and Marine Moisture-proof Power source

  • Model Number:APMS-150-48
  • Boat lighting LED Driver
  • Pro LED Floodlight Power source
  • marine Moisture-proof Power supply
  • Product description: 150W 48V Boat and Marine Moisture-proof Power source, for vehicle lighitng,Reflector light Power

IP67  150W 48VDC Waterproof Constant Voltage Power Supply for Outdoor LED wall washer light, spotlights, flood lights, projector lights

Product Feature:

ENERGY SAVING---Input Voltage AC 180-264V 50/60Hz, Output Voltage DC 48V, Max Rated Power 150 Watts

HIGH QUALITY---100% full-load burn-in test,Short circuit/Over loading/Over current/Over temperature protection.

WATERPROOF---Full protection aluminum housing, IP67 waterproof rating for indoor and outdoor wet, moisture and damp location use.

LONG LIFESPAN---Strong compatibility, Flicker-free, Suitable for LED streetlight, led spotlights, led wall washer lights, led strips, led panels, lightbox, warranty & service up to 5 years

SAFETY--- Compliance with worldwide safety regulations for lighting, EN55015, EN61347, EN61000-3-2, CE, ROHS, CB, KC, UL

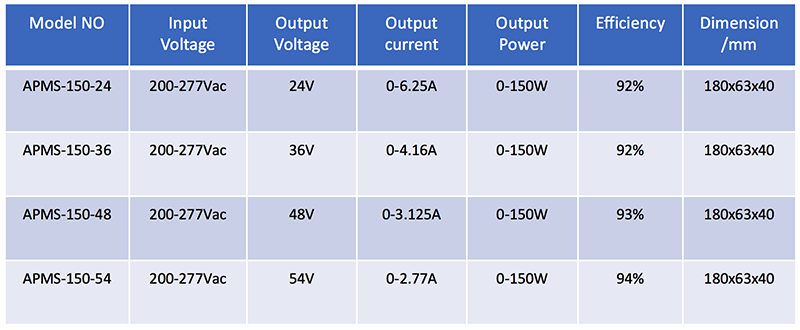

Model Number: APMS-150-48

Technical Specs:

1.Output Parameters

Rated Output voltage: 48VDC

Rated Output Current:3.125A

Rated Output Power:150W Max


Line Regulation:±0.5%

Load Regulation:±1.5%

Voltage tolerance:±3%

2.Input Parameters

Rated Input voltage:200-240VAC/100-240VAC

Input voltage range:180-305VAC, 47-63hz

Input Current Max:1.0A

Inrush Current<70A

Power Factor>0.95




Short Circuit

Over voltage

Over Temperature


Operating Temperature range:-40 to +80

Storage Temperature range:-45 to +80

Humidity: 1095%

Waterproof Level:IP67

5. Safety Standards

UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,

GB19510.14, IP67 Approved

Withstand voltage: I/P-O/P:3KV


EN55015(CISPR15), GB17743, EN61000-3-2 , Class C, EN61000-4-2,

8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4,

EN61000-4-54KV/Line-Line 6KV/Line-Earth, EN61000-4-6

6. Others


Dimension:155(L)*55 (W)*35(H)mm

Packing: 0.65KG/PC, 350x310x260mm, 24pcs / 16.6 Kg /0.029CBM/CTN
