Constant voltage

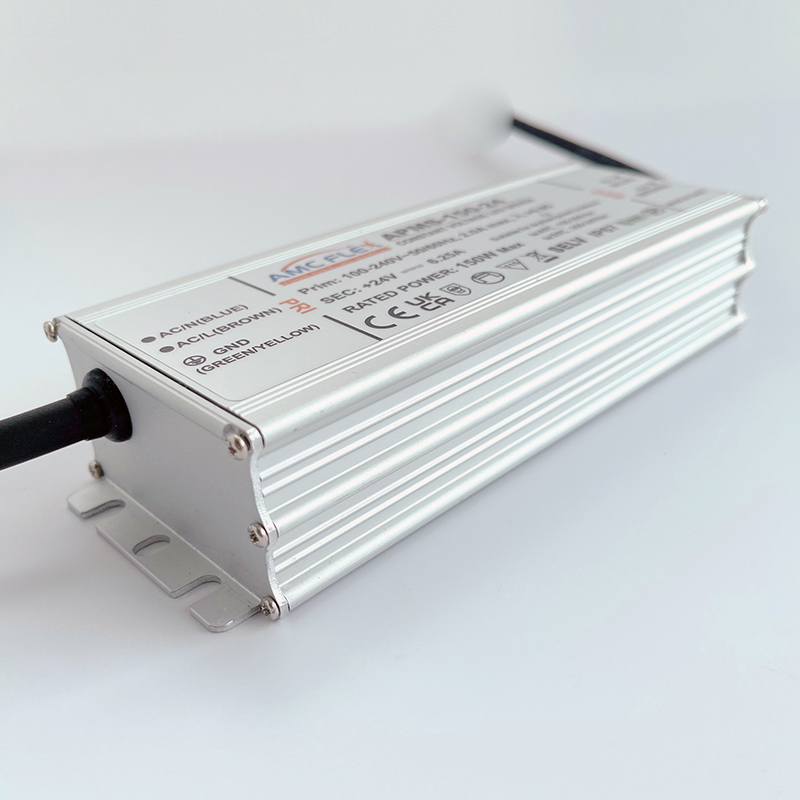

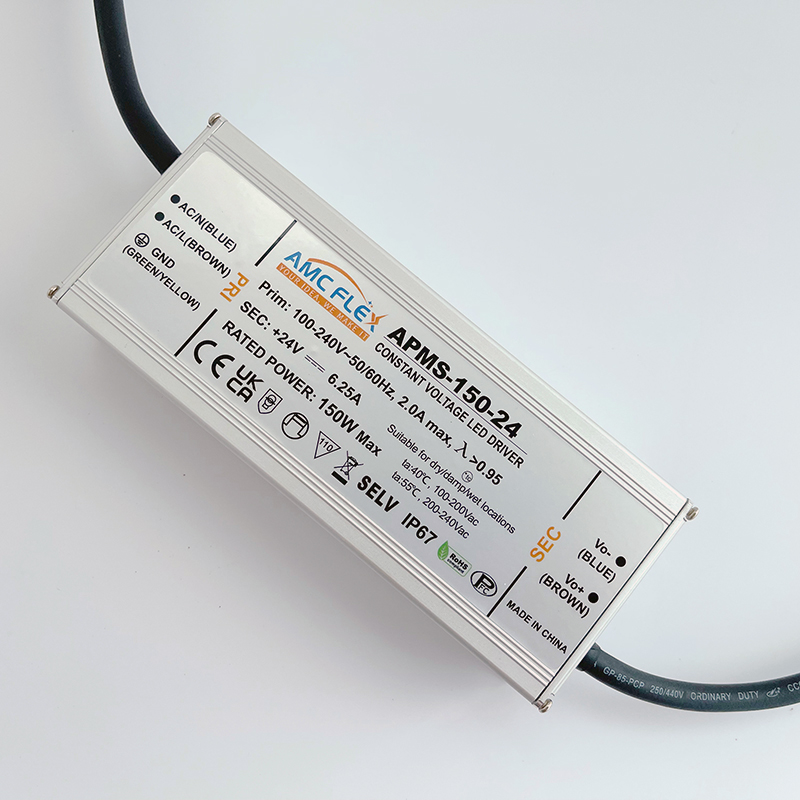

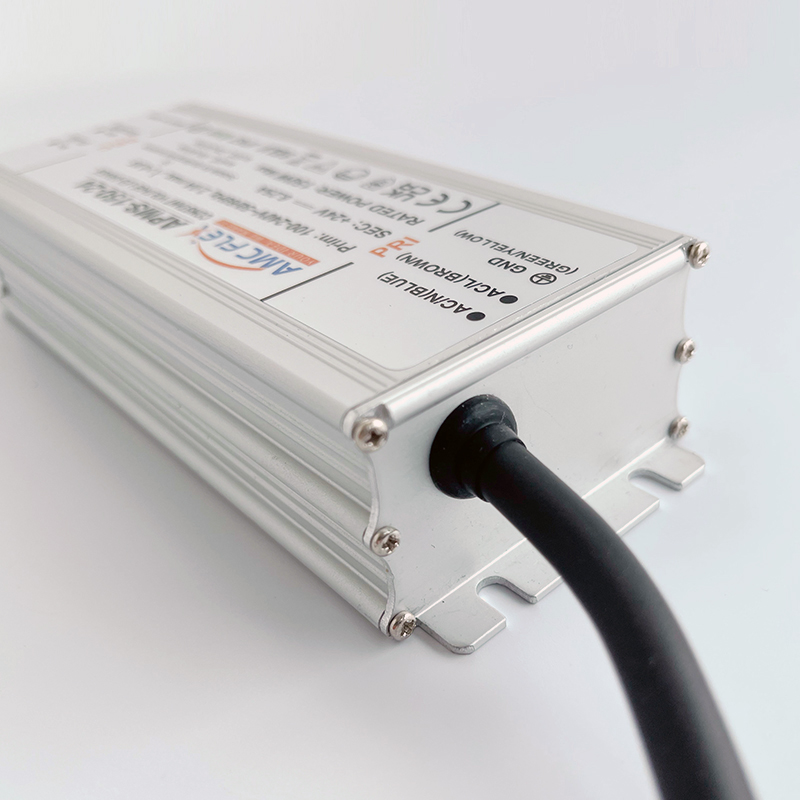

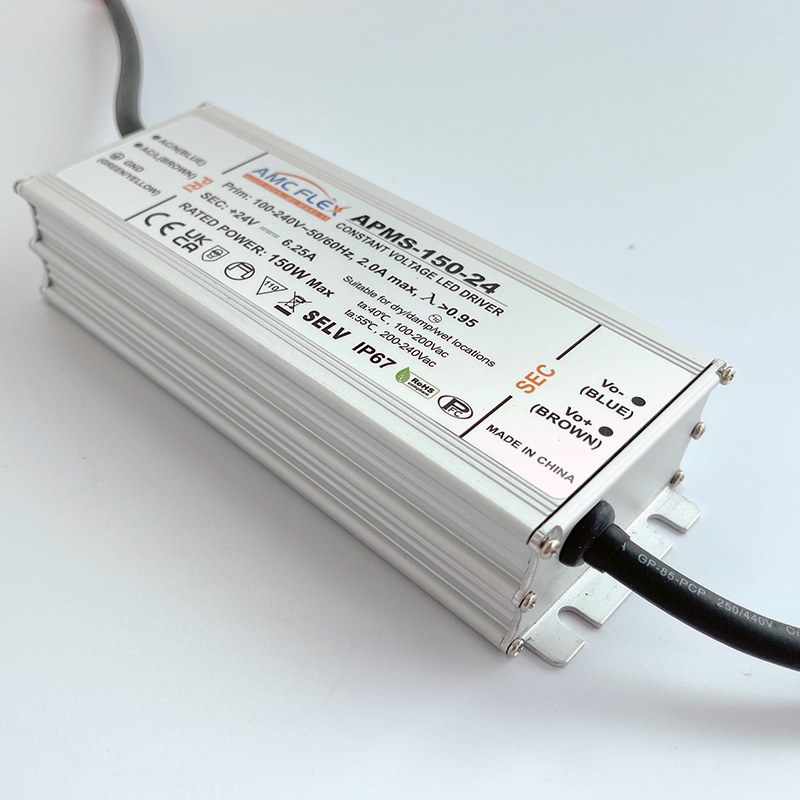

  • 150W 24V 6250mA Voltage outdoor LED Power Supply
150W 24V 6250mA Voltage outdoor LED Power Supply

150W 24V 6250mA Voltage outdoor LED Power Supply

  • APMS-150-24
  • 150W external led Power supply
  • flicker-free outdoor driver
  • LED Strip external led transformers
  • Product description: IP67 waterproof LED power supplies, used for floodlights, LED wall washer lights, spotlights, led projector, illuminated signs, light box, linear lighting, LED strips, urban lighting projects.....
  • INQUIRY

Product Features:

1.176-305VAC wide input voltage range

2.Constant Voltage Drive Mode

3.Built in active PF function, PF>0,95

4.High working efficiency up to 90%

5.THD<15%, Flicker-Free Design

6.IP67 waterproof level with fine aluminum housing, suitable for outdoor applications

7.Flicker-Free,Low ripple

8.4KV + 6KV Surge protection, more safety

9.Constant voltage + Constant Current Drive Mode

10. 100% Constant Power

11. 5 years warranty

Technical Specification:

Model

APMS-150-24

Remarks








Output

Rated Output voltage

24

VDC

Rated Output Current

6.25

A

Rated Output Power

150

W

Efficiency

90% (Typical 91%)

200VAC input, Rated Load

91% (Typical 92%)

240VAC input, Rated Load

Line Regulation

±0.5%

Load Regulation

±1.5%

Voltage tolerance

±2%

Ripple & Noise  (max)

240

mVp-p

Measured at 20MHZ of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor

Rise time

60

mS

25 , full load

Power On Delay time

3

S

200-240VAC, full load

Switch off Hold Up time

/

ms

Rated input voltage, rated load

Model

APMS-150-24

Remarks




Input

Rated Input voltage

200-277

VAC

Input voltage range

176-305

VAC

Input Frequency

47-63(Typical 50/60)

Hz

Input Current Max

1.0

A

Vin=176Vac, Full Load

Inrush Current

70

A

220Vac, full load, 25℃

Power Factor

0.95

176~277Vac input, full load

THD

15

%

Vin=176~277Vac, full load




Protection

Current Limiting

112%-144% of rated output current

Hi-CCUP Mode, Auto-recovery

after fault condition is removed

Over Voltage

27±1

V

Shut down output voltage, re-power on to recover

Over Temperature

110

Inner temperature, Auto-recovery

Short circuit

Yes

Hi-CCUP Mode, Auto-recovery

after fault condition is removed

Input undervoltage

>150

V







Environment

Operating Temperature range

-40 to +80Typical25

Refer to Derating Curve

Storage Temperature range

-45 to +80Typical25

Humidity

1095

%

NON-Condensing

Altitude

05000

M

Altitude Over 2000 meters, 1.5% derating for every 100 meters increase

Waterproof Level

IP67 full sealed

Cooling method

Air convection

Temperature Coefficient

0.03%/ (0-60 )

Vibration

10-500Hz, 5G 12min./1cycle, period for 72 min, each along X.Y. Z axes




Safety Standards

Safety standard

UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,GB19510.14, IP67 Approved

Withstand voltage

I/P-O/P

3000Vac   10mA (Max)

I/P-FG

1500Vac   10mA (Max)

O/P-FG

500Vac   10mA (Max)

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

Leakage Current

0.75mA

240Vac/60Hz


EMI

Conducted

EN55015(CISPR15), GB17743

Radiated

EN55015(CISPR15), GB17743

Harmonic Current

EN61000-3-2 , Class C @load≥50%




EMS

ESD

EN61000-4-2, 8KV air ; Level 2, 4KV contact

Radiated

EN61000-4-3

EFT/Burst

EN61000-4-4

Surge

EN61000-4-54KV/Line-Line 6KV/Line-Earth

Conducted

EN61000-4-6

EN61547, Electromagnetic Immunity Requirements applies to lighting Equipment


Others

MTBF

>200Khours, MIL-HDBK-217F (25℃)

Dimension

180(L)*63 (W)*40(H) mm

Packing

0.8Kg;16pcs / 13.4Kg/0.026CBM


Applications:

1. Outdoor led linear lighting

2. Illuminated Signs

3. Illuminated facade

4. Illuminated advertising light box

5. Architecture lighting projects

6. Decoration lighting projects

7. LED Wall washer lights

8. Christmas decoration led lights
