350W 24V 48V High IPrated watertight LED Drivers TUV CE UKCA ROHS ErP SELV

Waterproof IP67 LED Power Supply Driver Transformer 350W 230V AC to 24V DC Low Voltage Output rubber cable for Outdoor Use

Input: 200-240V AC 50/60HZ.  Output: 24V DC 14.6A 350W

Built-in active PFC function, PF>0.95

Converts 230V AC to 24V DC, widely use for LED floodlights, LED projector lights, led wall washer lights, LED panel lights, LED Strips, LED modules, led light bulbs and other 24V DC led lights(≤350W)

Aluminum alloy metal housing, easy for heat dissipation and ensure stability. 100% Waterproof IP67 protect for outdoor use

Automatic protection for: short circuit, overload, over voltage, over current, high temperature. Protection type: Hiccup mode, auto-recovery after fault condition is removed

High quality with 5 year warranty, and our seller support team always stand behind our products in any way, so please contact us for replacement if you have any quality problems

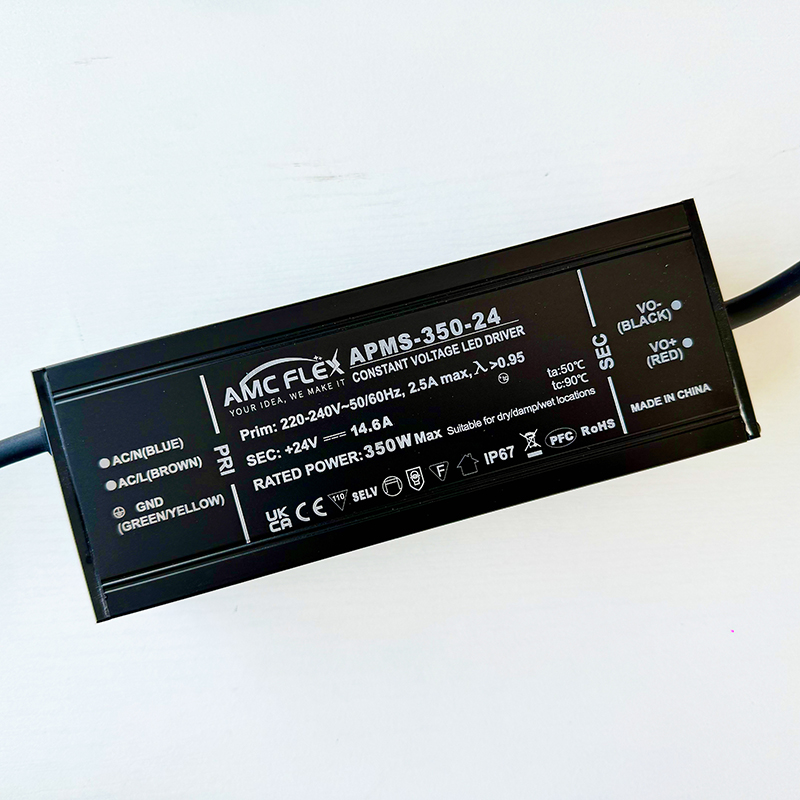

Model Number:APMS-350-24

Technical Specs:

1.Output Parameters

Rated Output voltage: 24VDC

Rated Output Current:14.6A

Rated Output Power:350W Max

Efficiency>93.5%

Line Regulation:±0.5%

Load Regulation:±1.5%

Voltage tolerance:±3%

2.  Input Parameters

Rated Input voltage:200-240VAC

Input voltage range:180-264VAC, 47-63hz

Input Current Max:2.0A

Inrush Current<70A

Power Factor>0.95

THD<12%

3. Protection

Overload

Short Circuit

Over voltage

Over Temperature

4. Environment

Operating Temperature range:-40 to +80℃

Storage Temperature range:-45 to +80 ℃

Humidity: 10～95%

5. Safety Standards

UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,

GB19510.14, IP67 Approved

Withstand voltage: I/P-O/P:3.75KV,I/P-FG:1.5KV, O/P-FG:500V

EMI,EMS

EN55015(CISPR15), GB17743, EN61000-3-2 , Class C, EN61000-4-2,

8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4,

EN61000-4-5，4KV/Line-Line 6KV/Line-Earth, EN61000-4-6

6. Others

MTBF>200Khours

Dimension:200(L)*68 (W)*39(H)mm

Packing: 0.85KG/PC, 385x285x265mm, 20PCS /18Kg /0.029CBM/CTN

INNER PCBA CIRCUIT, DESIGNED FOR HIGH PERFORMANCE, MEETS ALL SAFETY STANDARDS
