200W Voltage/Current

  • 200W 1050mA 95-190VDC Constant Current LED Driver with PFC
200W 1050mA 95-190VDC Constant Current LED Driver with PFC

200W 1050mA 95-190VDC Constant Current LED Driver with PFC

  • Model Number: APMS-200C-1050
  • 1050mA 95-190VDC lighting driver
  • highbay light LED Driver 1050mA
  • floodlight 1050mA LED Driver
  • Product description: 200W 1050mA led drivers, IP67 fully sealed with potting, used for outdoor led lighting, floodlights, LED spotlights, led projector, tunnel lights, linear lighting
  • INQUIRY

The APMS-200C-1050 Model is a 200W, constant-current, LED driver that operates from 100-305 Vac input with excellent power factor(PF>0.95). Created for many lighting applications including high bay, high mast, arena and roadway, etc, with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, Over load and over temperature.


1. Ultra high efficiency up to 94%

2. Full power at wide output current range(Constant power)

3. Thermal sensing and protection for led module

4. High level of Built-in surge protection:6KV

5. CLASS 1 design and SELV output

6. 5 years warranty

7. IP67 Waterproof type used for indoor and outdoor, wet, damp and moisture applications

8. Constant Power

9. Low THD<15%, Low Current ripple<1%


Technical Specification

1

Input

NO

Item

Specs

Unit

Note

1.1

Rated Input voltage

200~277

Vac

277V for North American only

1.2

Input voltage range

100~305

Vac

Refer to derating curve

1.3

Input Frequency

50/60

Hz

1.4

Input Frequency Range

47~63

Hz

1.5

Max input current

1.5

A

Vin=200Vac,Rated load

1.6

Input inrush current

≤70

A

240Vac Input voltage,25℃ Cold start

1.7

PF

≥0.95

Vin=100~240Vac,Rated load

1.8

THD

<15

%

Rated input voltage and load

2

Protection

NO

Item

Specs

Unit

Note

2.1

Over Load Protection

Constant current limit

2.2

Over Temperature protection

Yes

2.3

Over voltage protection

Yes

2.4

Short circuit protection

Yes, Hiccup mode, auto-recovery after fault condition is removed


3. Protection

Overload

Short Circuit

Over voltage

Over Temperature

4. Environment

Operating Temperature range:-40 to +80

Storage Temperature range:-45 to +80

Humidity: 1095%

Waterproof Level:IP67


5. Safety Standards

UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,

GB19510.14, IP67 Approved

Withstand voltage: I/P-O/P:3KV

EMI,EMS

EN55015(CISPR15), GB17743, EN61000-3-2 , Class C, EN61000-4-2,

8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4,

EN61000-4-54KV/Line-Line 6KV/Line-Earth, EN61000-4-6

6. Others

MTBF>200Khours

Dimension:187(L)*66.2 (W)*38(H)mm

Packing:1KG/PC, 350x310x260mm, 14PCS /15.5Kg /0.02CBM/CTN

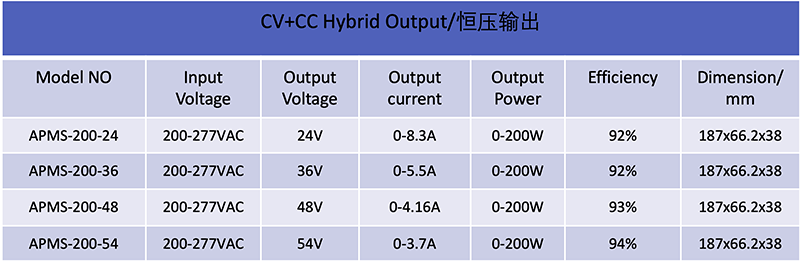

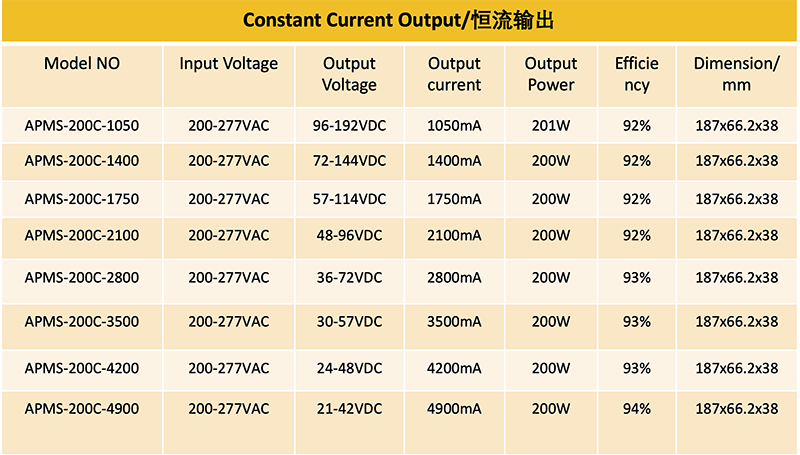

Other output voltage options available:
