100W 24V SELV CE ROHS compliance waterproof LED Driver

LED Driver, 100W 24V Waterproof LED Driver Transformer 180-264VAC to 24V 4.2A DC Electric D Power Supply for 24V LED Products

CONSTANT OUTPUT LED DRIVER: Wide AC Input 180-264VAC to 24V constant voltage, up to 93% High efficiency

Connecting dimming controllers smoothly.

Built-in active PFC circuit, PF>0.95

NO FLICKER: Please confirm the specific Wattage of the products before use to avoid flicker, THD<15%, Ripple<120mV

SAFETY CERTIFICATION: Class 2,SELV, CE, ROHS, ERP, CB, KC

FULL PROTECTION: Plastic case for dry and damp locations; It has Short Circuit/Over Loading /Over temperature/Over Voltage protections that keep your products and projects safety working

HIGH QUALITY: Suitable LED lighting and moving sign applications, 5 years warranty

Model:APF-100HL-24

Technical Specs:

1.Output Parameters

Rated Output voltage: 24VDC

Rated Output Current:4.2A

Rated Output Power: 100.8W Max

Efficiency>92%

Line Regulation:±1%

Load Regulation:±1.5%

Voltage tolerance:±3%

2.  Input Parameters

Rated Input voltage:200-240VAC/100-120VAC

Input voltage range:180-264VAC/90-132VAC, 47-63hz

Input Current Max: 220VAC: 0.6A/115V: 1.2A

Inrush Current<60A

Power Factor>0.95

THD<15%

3. Protection

Overload

Short Circuit

Over voltage

Over Temperature

4. Environment

Operating Temperature range:-30 to +70℃

Storage Temperature range:-40 to +80 ℃

Humidity: 10～95%

Waterproof Level: IP67

5. Safety Standards

UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,

GB19510.14, IP67 Approved

Withstand voltage: I/P-O/P:3KV

EMI,EMS

EN55015(CISPR15), GB17743, EN61000-3-2 , Class C, EN61000-4-2,

8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4,

EN61000-4-5，4KV/Line-Line 6KV/Line-Earth, EN61000-4-6

6. Others

MTBF>200Khours

Dimension:162.5(L)*42 (W)*34(H)mm

Packing: 0.44Kg; 32pcs/15.1Kg/0.26CBM

Inner PCBA Circuit image, designed to meet All safety standards and high performance.

DRIVE MODE: CV+CC Hybrid,  Constant Current Region: 18V~23V

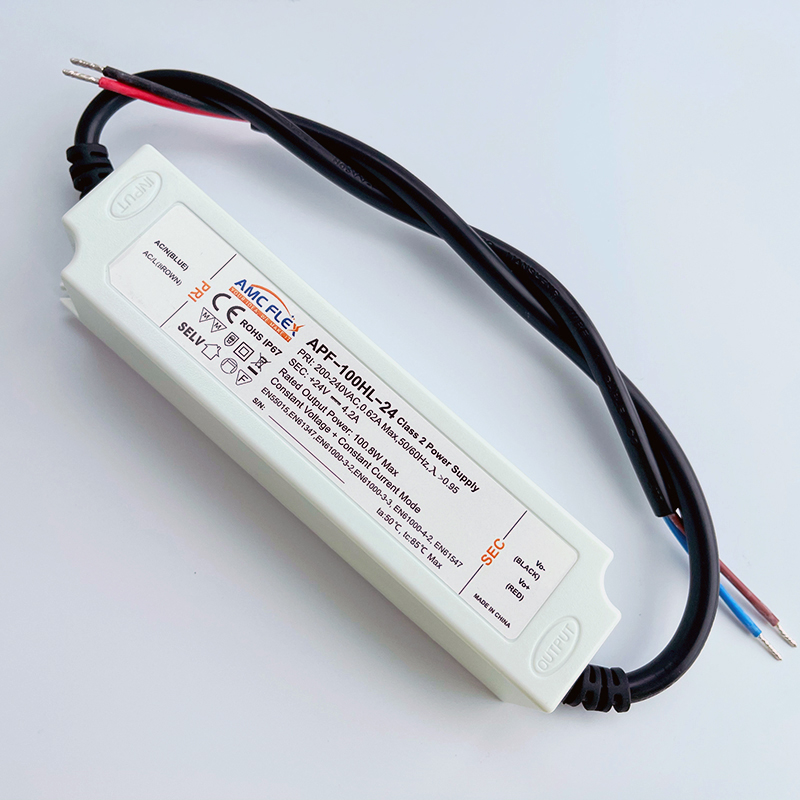

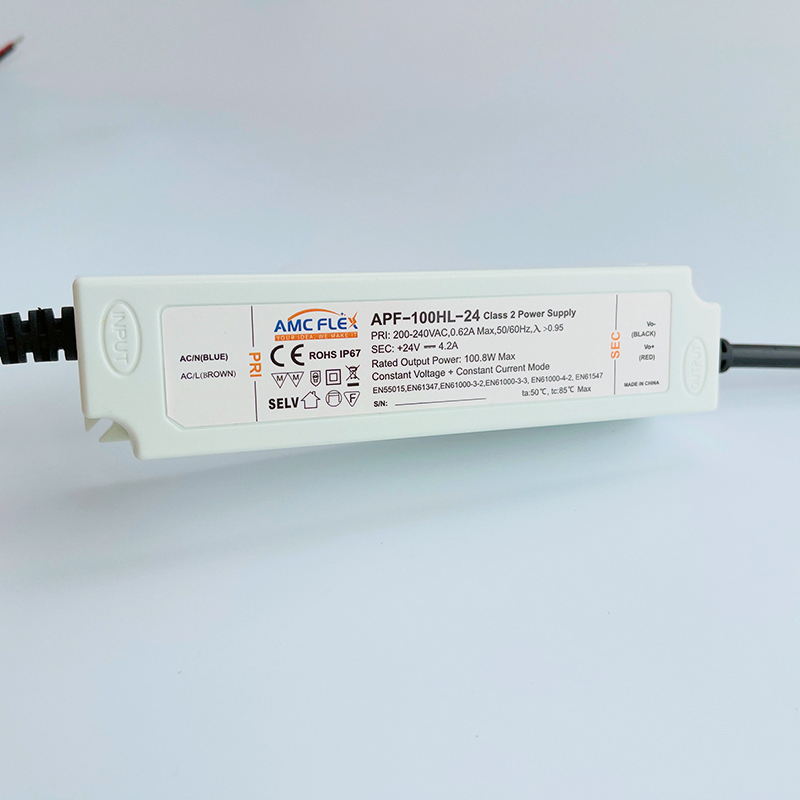

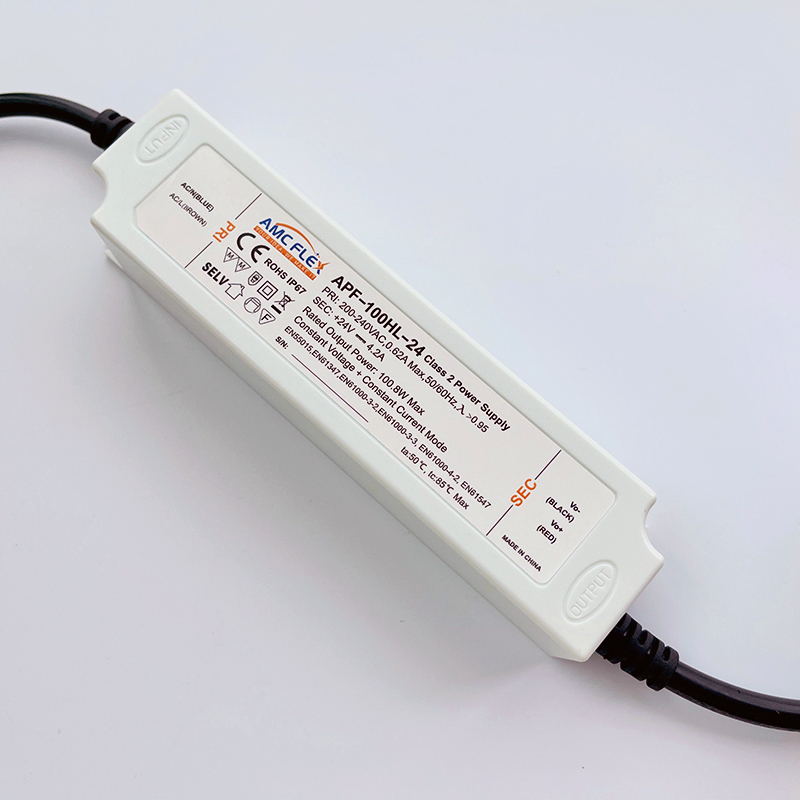

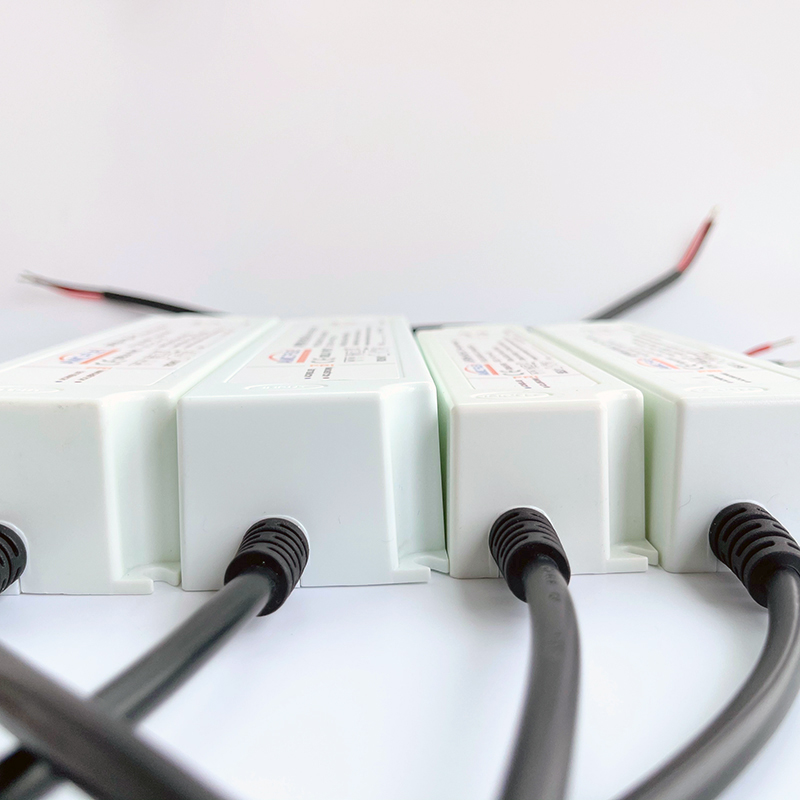

PRODUCT IMAGE:

OTHER OUTPUT OPTIONS AVAILABLE:

Input Cable: VDE Certified H05VV-F,Blue/Brown, 2x1.0mm2 with SR

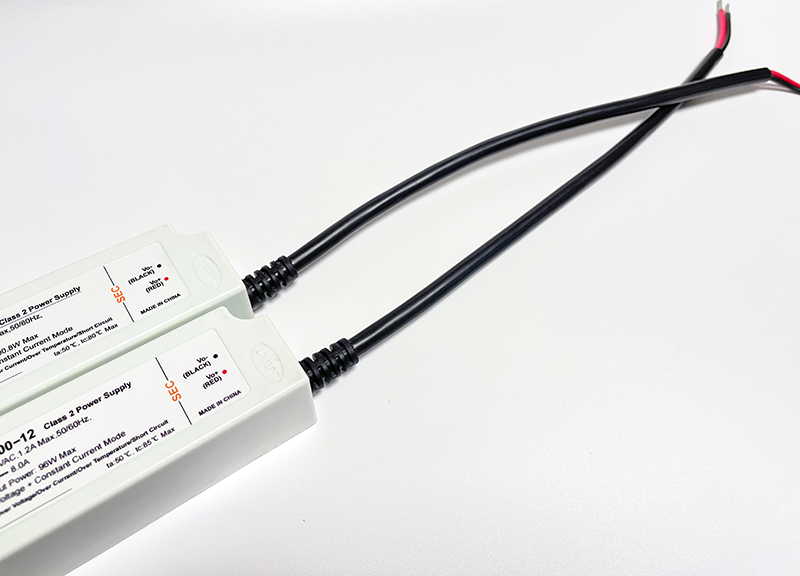

Output Cable: VDE Certified H05VV-F,Black/Red, 2x1.0mm2 with SR

EMC Emission: EN55015

Conducted: EN55015

Technical Specs Download:

APF-100HL-24 Technical Specs
