60W Voltage/Current

  • 60W 12V 5A Waterproof LED Power Supply constant voltage
  • 60W 12V 5A Waterproof LED Power Supply constant voltage
  • 60W 12V 5A Waterproof LED Power Supply constant voltage
  • 60W 12V 5A Waterproof LED Power Supply constant voltage
60W 12V 5A Waterproof LED Power Supply constant voltage60W 12V 5A Waterproof LED Power Supply constant voltage60W 12V 5A Waterproof LED Power Supply constant voltage60W 12V 5A Waterproof LED Power Supply constant voltage

60W 12V 5A Waterproof LED Power Supply constant voltage

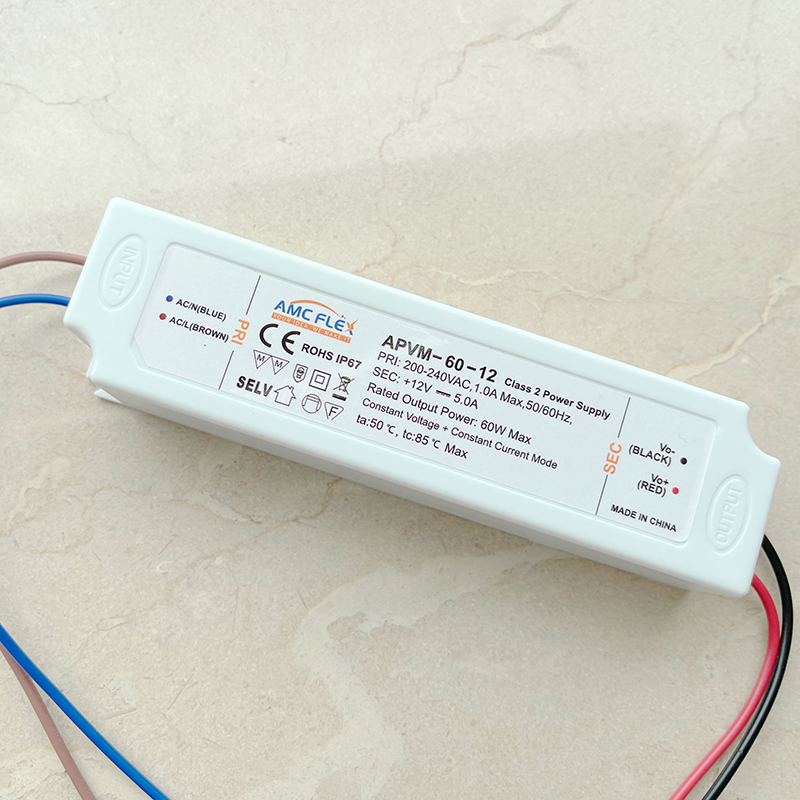

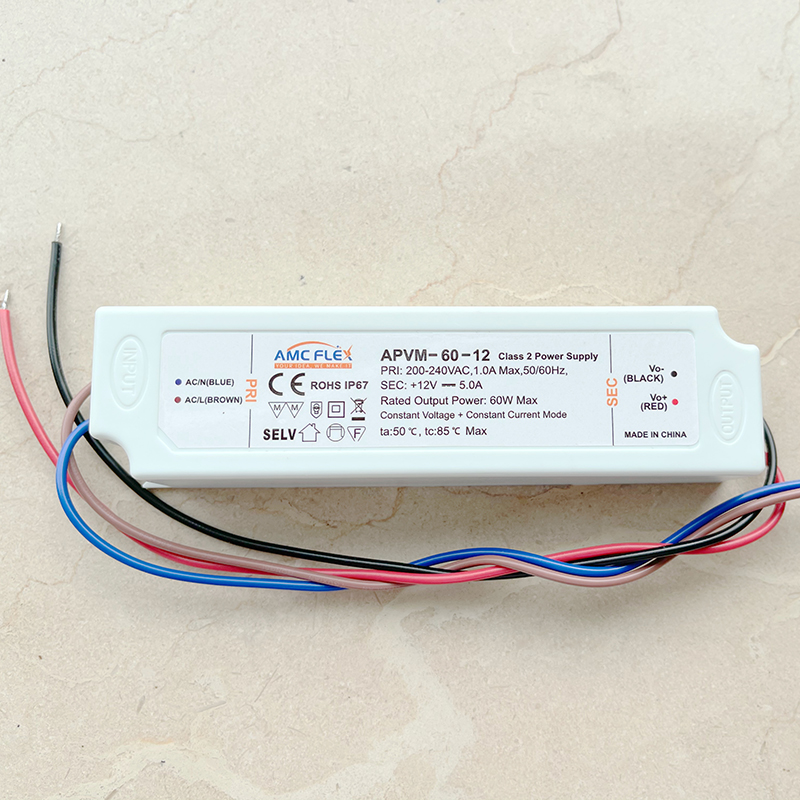

  • Model NO:APVM-60-12
  • 12V 5A LED Power supply
  • 60W Waterproof LED Driver
  • 12V Plastic LED Module power supply
  • Product description: 60W 12V 5A ip67 plastic waterproof led power supply for indoor and outdoor illuminated signs, slim light box, digital billboard, led signage, led strips, LED modules, linear lighting, indoor led light
  • INQUIRY

AC to DC Power Supply, IP67 Enclosed LED Single Output, 12V, 5Amp 60W

SAFE LED DRIVER- High quality materials, safe for use, work with 12VDC LED light, such as: LED Strip light, cabinet light, Puck Lights, Rigid Strip Light etc.
NEW TECHNOLOGY- working with dimming controller smoothly
EASY TO USE- No flicker design, good for eye protection, small size suitable for small space installation
GREAT DESIGN- fully potted for waterproof, can be use at wet or dry location, full protection: OVP, OCP, OTP, Surge protection, safe to run your product, for home or commercial use.


Product Features:

Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage/Over Temperature
Class 2 power unit, Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
Pass LPS
100% full load burn-in test
Low cost, High reliability
3 years warranty

Model Number: APVM-60-12

Drive mode: Constant voltage + Constant current Hybrid mode

Input Voltage: 100-240VAC/200-240VAC 47-63Hz 1.0A max

Output Voltage: 12V

Output Current: 5.0A

Output Rated Power: 60W max

Inrush Current: 30 Amps max. at 230VAC/50Hz,full load

No Load Power Consumption: 0.5W

TC Max: 85 ℃, Ta:50 ℃

Protections: Short Circuit /Over Current /Over Voltage

/over temperature protection

Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery

Over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery

Over Current Protection (OCP): Yes,hiccup mode, auto-recovery

Working TEMP.: -30°C to -70°C

Working Humidity: 10%-90% RH non-condensing

Storage TEMP.,Humidity and altitude: -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.

Standby Power Consumption<0.5W

Certificates and approvals: CE CB SELV ROHS

MTBF: 100Khours minimum at full load at 25℃ ambient

Dimension: 150 x 40x 30mm (L x W x H)

Packing: 0.4Kg; 30pcs/13Kg/0.26CBM

60W 12V 5A Waterproof LED Power Supply constant voltage

Other Output Options available:

60W 12V 5A Waterproof LED Power Supply constant voltage

TEMPERATURE OPERATION TEST: Ta:40°C, Tc Max: 70°C

APVM-60-12:

EMC: EN55015

Neutral:


Line:


RADIATED:

X:


Y:


Z:


RADIATED DISTRUBANCE:

Vertical:


Vertical:


TECHNICAL SPECS DOWNLOAD:

APVM-60-12 Technical Specs
