150W 24V AC-DC Waterproof LED Drivers PFC SELV

150watt 24VDC output  LED Driver IP67 PFC Waterproof Class II LED transformer

Constant Current Range: 17- 24Volts

Features:

1.Wide AC input  (up to 264VAC)

2.Built-in active PFC function,PF>0.95

3.High efficiency up to 94%

4.Fully protected circuit design

5.Cooling by free air convection

6.Fully isolated plastic case

7.Fully encapsulated with IP67 level

8.Class II power unit, no FG

9.Suitable for LED lighting and moving sign applications

10.Compliance to worldwide safety regulations for lighting

11.Suitable for dry / damp / wet location

12. 5 years warranty

Convert 240VAC to 24VDC for LED strip light, work with AC wall dimmer to dimming the light brightness from 1%-100% smoothly and stable.

SAFE LED DRIVER- High quality materials, safe for use, work with 24VDC LED light, such as: LED Strip light, cabinet light, Puck Lights, Rigid Strip Light etc.

EASY TO USE- No flicker design, good for eye protection, small size suitable for small space installation

GREAT DESIGN- fully potted for waterproof, can be use at wet or dry location, full protection: OVP, OCP, OTP, Surge protection, safe to run your product, for home or commercial use.

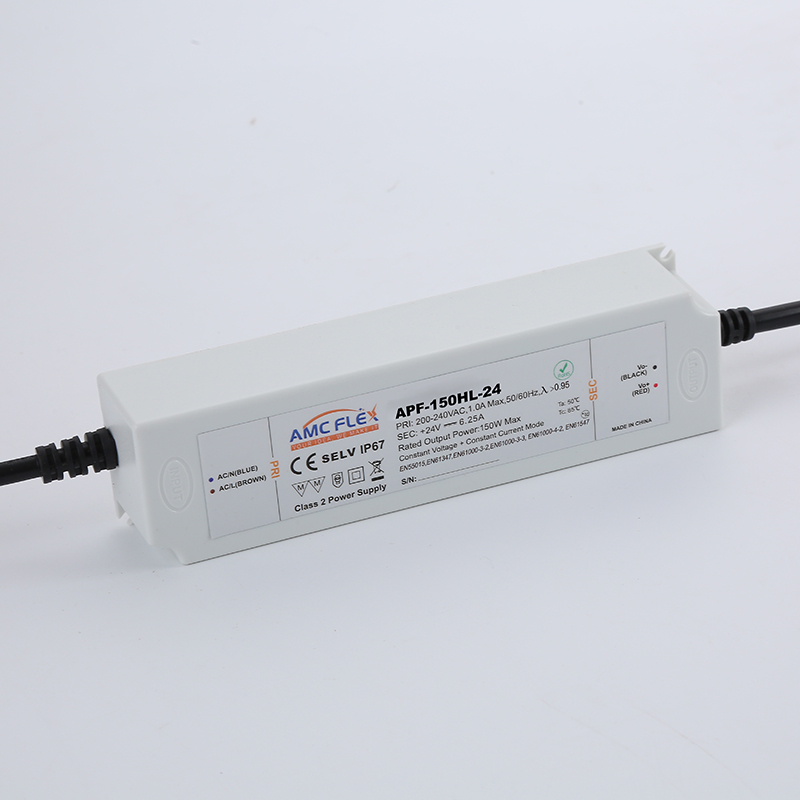

Model Number: APF-150HL-24

Drive Mode: two output methods: Constant voltage and constant current

Input Voltage: 200-240VAC 47-63Hz,1.0A max/100-120VAC, 2.0A Max

Built-in Power Factor, PF>0.95, THD<15%

Output Voltage: 24V

Output Current:6.25A

Output Rated Power: 150W max

Inrush Current: 60 Amps max. at 230VAC/50Hz,full load

No Load Power Consumption: ＜0.5W

TC: 85 ℃, Ta:50 ℃

Protections: Short Circuit /Over Current /Over Voltage/over temperature protection

Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery

Over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery

Over Current Protection (OCP): Yes,hiccup mode, auto-recovery

Working Temperature: -40°C to 70°C

Working Humidity: 10%-90% RH non-condensing

Storage TEMP: Humidity and altitude: -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.

Compliance to

EN55015,

EN61347-1,

EN62384

EN61347-2-13
EN61000-3-2 Class C (@load 60%)

EN61000-3-3

EN61000-4-2,3,4,5,6,8,11

EN61547

Certificates and approvals: CE CB SELV ROHS

Input Cable: 2x1.0mm2 VDE BLUE/BROWN, Output Cable: 2x1.5mm2 VDE BLACK/RED

MTBF: 150Khours minimum at full load at 25℃ ambient

Dimension: 190 x 52x 37mm (L x W x H)

Inner PCBA Circuit image, designed to meet All safety standards and high performance.

DRIVE MODE: CV+CC Hybrid,  Constant Current Region: 18V~23V

Other Output voltage options available:

Input Cable: Blue/Brown, 2x1.0mm2 with SR:

Output Cable: Black/Red, 2x1.5mm2 with SR

EMC Emission: EN55015

Conducted: EN55015
