100W Voltage/Current

  • 100W 24V 4.2A IP67 Hermetic Constant Voltage LED Trafos
  • 100W 24V 4.2A IP67 Hermetic Constant Voltage LED Trafos
  • 100W 24V 4.2A IP67 Hermetic Constant Voltage LED Trafos
  • 100W 24V 4.2A IP67 Hermetic Constant Voltage LED Trafos
100W 24V 4.2A IP67 Hermetic Constant Voltage LED Trafos100W 24V 4.2A IP67 Hermetic Constant Voltage LED Trafos100W 24V 4.2A IP67 Hermetic Constant Voltage LED Trafos100W 24V 4.2A IP67 Hermetic Constant Voltage LED Trafos

100W 24V 4.2A IP67 Hermetic Constant Voltage LED Trafos

  • LED Trafos
  • 24V waterproof LED Trafos
  • 24V waterproof led power supply
  • LED Module power supply
  • Product description: 100W 24V 4.2A ip67 plastic waterproof led power supply for illuminated signs,light box,led strips, LED modules, linear lighting
  • INQUIRY

LED Driver, 100W 24V Waterproof LED Driver Transformer 180-264VAC/90-132VAC to 24V 4.2A DC Electric D Power Supply for 24V LED Products

CONSTANT OUTPUT LED DRIVER: Wide AC Input 180-264VAC to 24V constant voltage, up to 93% High efficiency

Connecting dimming controllers smoothly.

NO FLICKER; Please confirm the specific Wattage of the products before use to avoid flicker

SAFETY CERTIFICATION: Class 2,SELV, CE, ROHS, ERP, CB, KC

FULL PROTECTION: Plastic case for dry and damp locations; It has Short Circuit/Over Loading /Over temperature/Over Voltage protections that keep your products and projects safety working

HITLIGHTS QUALITY: Suitable LED lighting and moving sign applications, 3 years warranty

Constant voltage+Constant Current Hybrid LED Power supply

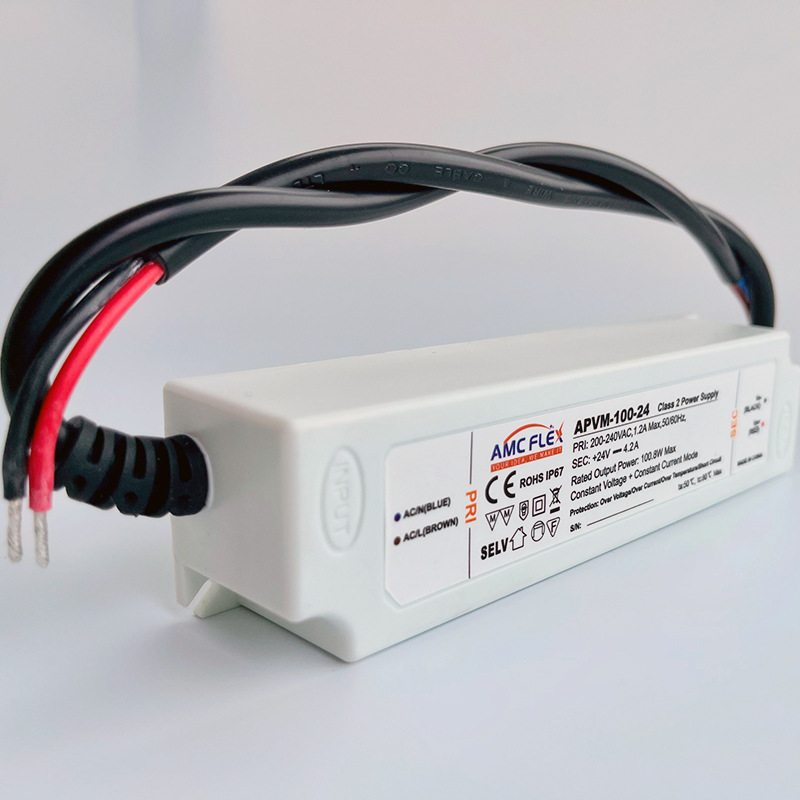

Model Number: APVM-100-24

Input Voltage: 200-240VAC 47-63Hz 1.2A max/90-132VAC, 2.2A Max

Output Voltage: 24V

Output Current: 4.2A

Output Rated Power: 100.8W max

Inrush Current: 60 Amps max. at 230VAC/50Hz,full load

No Load Power Consumption: 0.5W

TC Max: 80 ℃, Ta:50 ℃

Protections: Short Circuit /Over Current /Over Voltage

/over temperature protection

Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery

Over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery

Over Current Protection (OCP): Yes,hiccup mode, auto-recovery

Working TEMP.: -30°C to -70°C

Working Humidity: 10%-90% RH non-condensing

Storage TEMP.,Humidity and altitude: -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.

Standby Power Consumption<0.5W

Certificates and approvals: CE CB SELV ROHS

MTBF: 100Khours minimum at full load at 25℃ ambient

Dimension: 162 x 43x 32mm (L x W x H)

Packing: 0.44Kg; 32pcs/15.1Kg/0.26CBM

IP67 Hermetic Constant Voltage LED Trafos

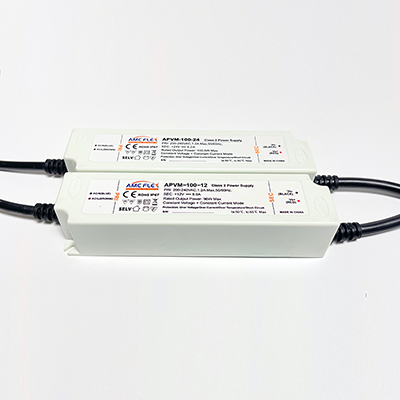

Other Output voltage options available:

IP67 Hermetic Constant Voltage LED Trafos

TECHNICAL SPECS DOWNLOAD:

APVM-100-24 Technical Specs



Input Cable: Blue/Brown, 2x1.0mm2 with SR

Output Cable: Black/Red, 2x1.5mm2 with SR

IP67 Hermetic Constant Voltage LED Trafos

EMC Emission: EN55015


IP67 Hermetic Constant Voltage LED Trafos


Conducted: EN55015
